SWB ASS Bike
2 WHEELER S.W.B. HOMEBUILT A.S.S. 26/16
HEIGHT: 1130mm
LENGTH: 1955mm
WHEEL BASE: 1290mm
TURNING CIRCLE: 2650mm
CRANK HEIGHT: 550mm
CRANK LENGTH: 175mm
PEDAL CLEARANCE: 370mm
GROUND CLEARANCE: 285mm
SEAT HEIGHT: 540mm
SEAT ANGLE: 135 degrees

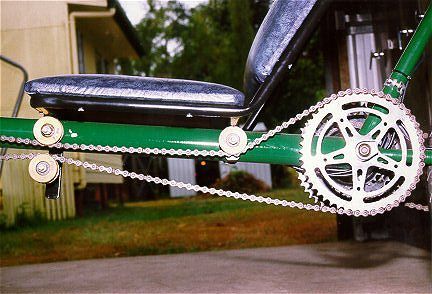

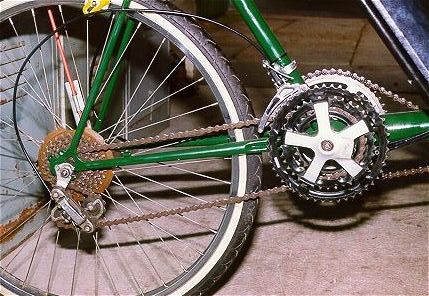

GEARS: 15 gears chain ring 28/38/48 rear 14/17/20/23/28
GEAR INCH: 17.16 to 58.83
RAKE ANGLE: 80 degrees
